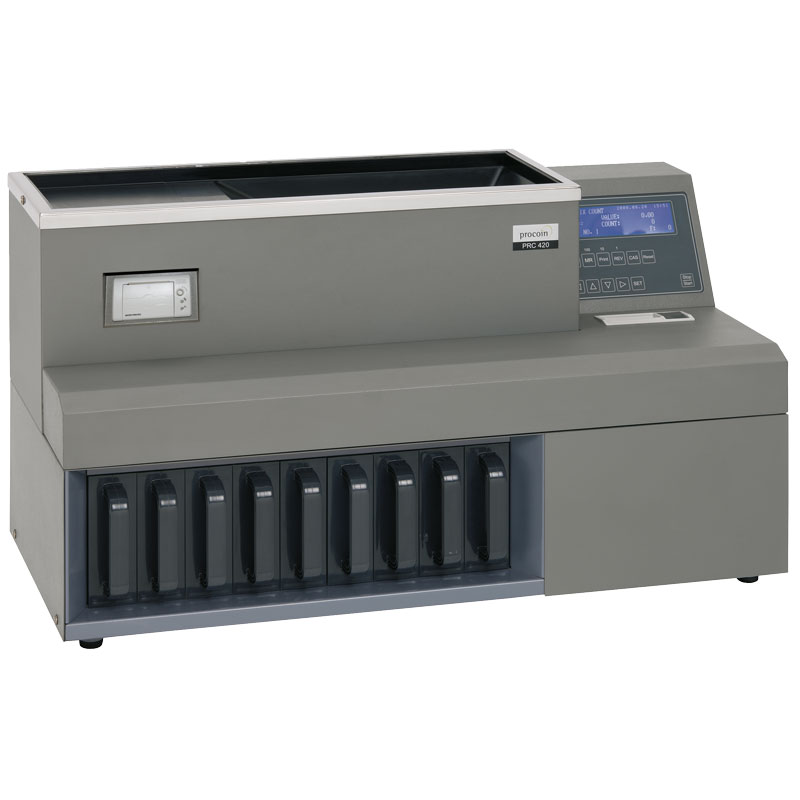

The Procoin PRC420 is a high-speed coin sorter designed for industrial and commercial use, capable of sorting and counting up to eight different coin denominations in a single run. Utilizing a flat straight rail principle and equipped with the Coinsure Adaptive® detection system, it efficiently identifies and rejects counterfeit, foreign, or non-conforming coins into a dedicated reject pocket. The machine can process up to 2,800 coins per minute and is adaptable for currencies such as PLN or EURO.

Features

• Capacity: Features a hopper that holds up to 12,000 coins, with eight receiving pockets and a reject pocket each holding a minimum of 500 coins.

• Coin Specifications: Processes coins with diameters from 14.0 to 34.0 mm and thicknesses up to 4.0 mm.

• Functionality: Offers value counting, batching, and summing modes, with an integrated thermal printer for receipts and optional bagging systems for sorted coins.

• Connectivity: Includes RS232C communication, with optional barcode reader, PC integration, and monitoring capabilities.

• Design: Compact construction with a built-in LCD display and membrane control panel for user-friendly operation. Optional mobility is provided via a dedicated trolley.

Applications

The PRC420 is widely used by cash-in-transit (CIT) companies, banks, retailers, and other businesses handling large volumes of mixed coins. Its robust design ensures durability and cost-effective coin processing, making it suitable for high-throughput environments like cash centers and supermarkets.

Technical Specifications

• Sorting Speed: Up to 2,800 coins per minute

• Power Supply: 110V/60Hz or 230V/50Hz, 300W consumption

• Dimensions: 820 mm (W) x 360 mm (D) x 455 mm (H)

• Weight: 59.0 kg

• Sensors: Coinsure Adaptive® for counterfeit detection

History

Sold by Procoin GmbH, the PRC420 was part of a series of coin-handling equipment designed for reliability and efficiency. Procoin GmbH ceased operations on September 30, 2021, but support and spare parts for the PRC420 remain available.
